Fast Frame studs, nogs and junctions.
FAST FRAME E10 is our pre-cut framing solution, with studs, noggins, wides and junctions cut to length and packed to specification before leaving the yard. Designed to save time on site, reduce cutting and make framing more efficient. All products are H2S treated, sustainably sourced and certified.
Fast Frame E10 is an engineered alternative to traditional MGP10 pine framing. It’s designed for residential and light commercial timber framing, including studs, plates, noggins and other general framing applications. It is intended for internal, above-ground applications protected from the weather.
No,arguably cheaper. Fast Frame E10 is the same cost more per metre as MGP10 pine, but material price is only part of the cost of building a frame. Pre-cut Studs, longer lengths and dimensionally stable timber means less time cutting, sorting, fewer defects, less waste and less labour correcting bows and twists. The real comparison isn't just cost per metre — it's the cost of getting the frame up.
Fast Frame E10 is available from Onsite Timber, with a large range of sizes and lengths stocked for delivery across Sydney. Get a quote or place your order through the Onsite Timber App, or contact our team directly.
E10 is primarily suited to general framing applications, while E13 offers greater stiffness and strength and is typically used where higher structural capacity is required, such as beams, lintels and other heavily loaded members. Put simply: E10 for framing. E13 when you need more muscle.
Yes. Fast Frame E10 is H2S treated, providing protection against borers and termites. H2S treatment is intended for dry, internal, above-ground applications south of the Tropic of Capricorn.
No. Fast Frame E10 is not H3 treated and should not be used where it will be exposed to the weather. It is designed for internal, above-ground applications protected from wetting.
Yes. Onsite Timber can supply Fast Frame in pre-cut studs, noggins and selected custom lengths. Less measuring, less cutting and less waste on site means your carpenters can spend more time actually putting the frame together, another way to frame faster.
Fast Frame E10 is available in familiar framing sections including: 90 × 45 | 140 × 45 | 190 × 45 | 240 × 45 | 290 × 45 mm Lengths typically range from 3.6 m to 9.6 m, depending on section and stock availability.

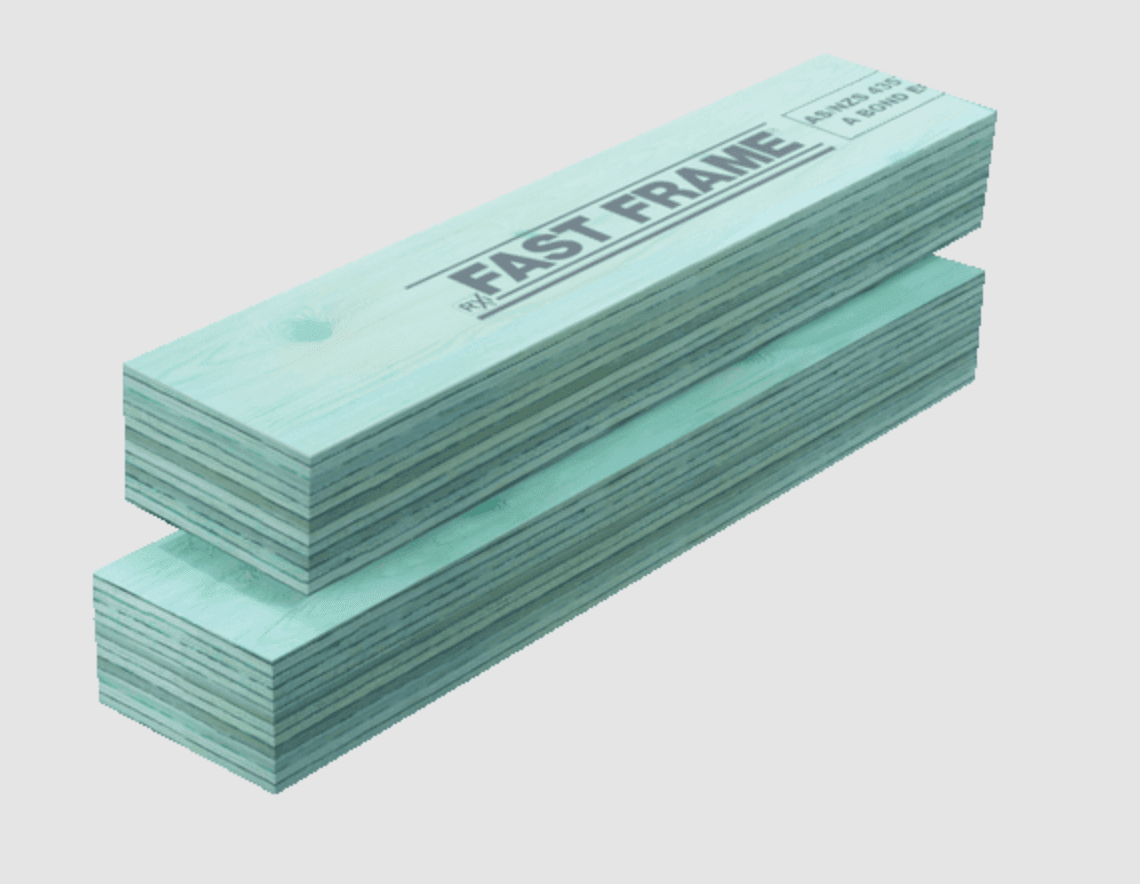

MGP10 is solid, machine-graded pine, while Fast Frame E10 is LVL — Laminated Veneer Lumber — made by bonding multiple timber veneers together to create a consistent engineered product. The big advantage is straightness and dimensional stability. Solid pine can naturally bow, twist, cup or shrink as moisture conditions change. LVL is engineered to minimise these variations, giving you straighter material, more consistent dimensions and fewer defects to work around.
Straight timber saves time. Less sorting through packs, less fighting bows and twists, and less time straightening walls. Combine that with long lengths, pre-cut studs and noggins and reliable site delivery, and Fast Frame is designed to do exactly what the name says — help you frame faster.
